Symphony w/O-320 engines Tuned Exhaust System

Bolt-On Horsepower. Complete replacement of your exhaust system. FAA approved by STC and for SA-160 or OMF-160 with Lycoming O-320 engines.

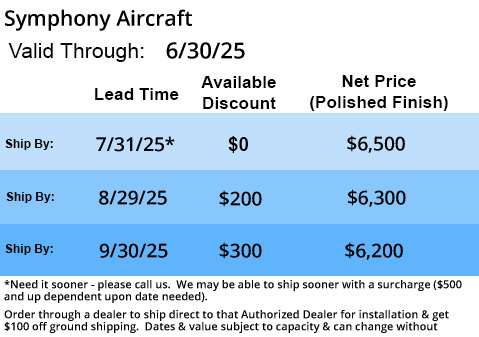

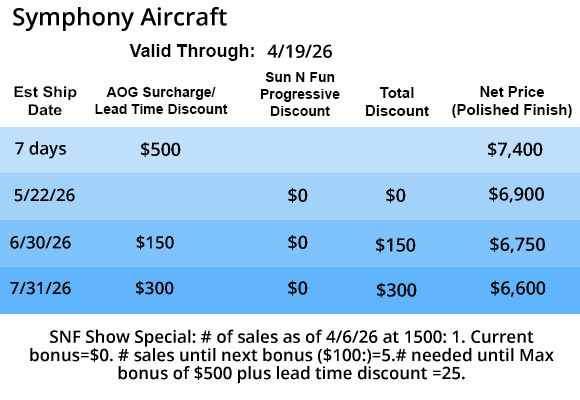

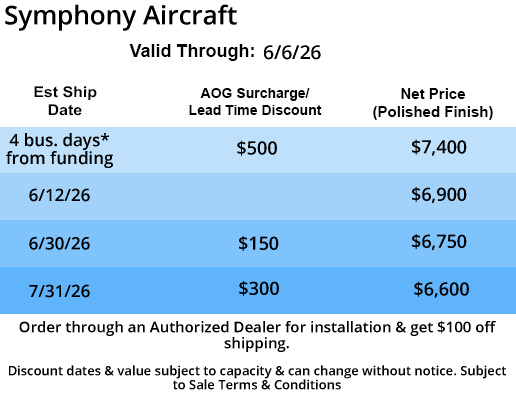

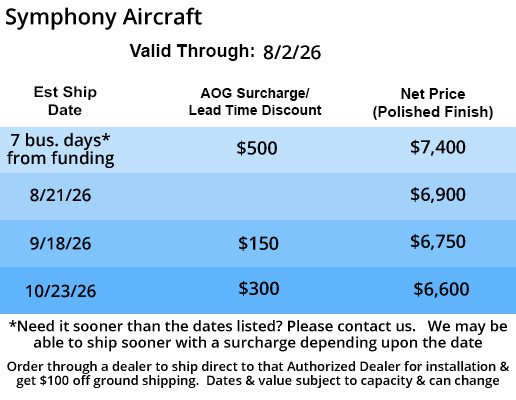

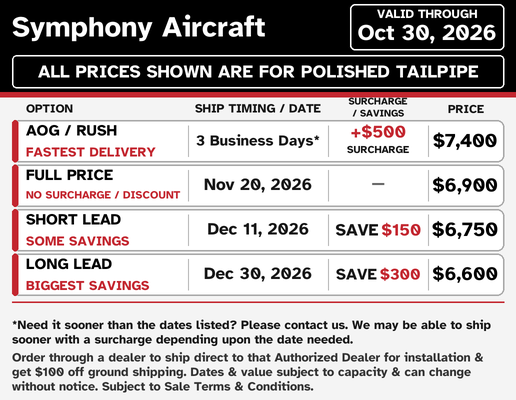

For lead times and discounts see table below

Sporting several advanced aerodynamic refinements such as slotted Fowler flaps, Vortex Generators and aileron fences, these sporty looking aircraft are designed for fun and efficient flying from the ground up.

Product Brochure - click here to download

Power Flow’s well proven and widely accepted Tuned Exhaust System, now installed and flying on over 4,300 GA aircraft worldwide helps your Symphony maximize both!

The Power Flow Tuned Exhaust System is not just a replacement - it is a vast improvement over the stock Symphony exhaust system.

The concept is simple, out with the old exhaust gases, in with the new fuel-air charge. By more effectively emptying each cylinder of spent exhaust gases, Power Flow gives your Symphony a number of significant benefits:

• You will immediately notice an increase in RPM (30-130 more).
• Significant improvement in rate of climb (100 - 300 fpm).
• You are in control: Want to save fuel? You can use less throttle to fly at your current cruise speeds and save from 1/2 to 2.2 gallons per hour.
• For more power, use the extra RPM (100 RPM yields approximately five extra knots of airspeed for an additional 1/2 gph in fuel burned).
• The Service Ceiling on your Symphony will increase by 2,000’ to 5,000’, with a corresponding improvement in safety margins in high Density Altitude environments.
• CHT’s are reduced by 10O F – 20O F with less difference between cylinders.

Don't just take our word for it - listen to what just some of our happy Power Flow customers have to say about the Power Flow tuned exhaust system on their aircraft:

The Power Flow is a versatile, quality constructed, complete replacement of the entire exhaust system on your Symphony. A new Cabin and Carburetor Heat shroud (utilizing your current SCAT tube hook-ups) is included. The entire system is constructed from 321 stainless steel and includes minimal structural welds in the cabin heat section for improved safety. All necessary parts are included for easy installation, usually requiring just 3 – 5 hours. The system can be installed by one of our Authorized Dealers, by your local A&P / IA, or you can fly to us for the installation. Fly in with a standard Symphony, fly out (usually the same day) tuned for maximum performance and efficiency.

Our industry leading 60 day money back guarantee means that if for some reason the performance benefits listed above fail to materialize on your Symphony, you can return the system to us within 60 days of its installation for a full refund of your purchase price. Fine Print? You just read it.

Polished or Ceramic?

The Ceramic Coated tailpipe is a cosmetic enhancement that hides the heat induced discoloration that is characteristic of stainless steel (think of the "bluing" you see on the muffler of a motorcycle). This discoloration has absolutely no effect on performance or reliability but the ceramic coating covers it up permanently. Otherwise, the polished tailpipe begins to discolor after a few hours of flying time. It can be re-polished anytime, but if you are proud of your Symphony’s appearance and would rather spend your time flying than polishing, the ceramic is a nice feature to have.

A couple of other important pieces of information:

#1.) We strongly recommend that the aircraft’s propeller be dynamically balanced to within 0.2 ips (inches per second) upon installation of the Power Flow System and every two to four years thereafter. If the propeller is dynamically balanced within 25 flight hours of the installation of the Power Flow System and you furnish PFS with copies of the logbook entries confirming this, PFS will extend the warranty on the Tuned Exhaust System from 12 months to 24 months or 500 Flight Hours (whichever occurs first).

Doing so every 2 - 4 years thereafter will dramatically improve the useful life and the reliability of every component that is bolted to the engine, including the Power Flow System.

#2) The Power Flow System has no service life limit. It is designed and built to last several thousand flight hours and will quite likely be the last exhaust system you need to buy for your aircraft. As with any high performance system however, it must be maintained properly. Every 500 flight hours or annually (whichever comes first) the four slip joints on the system must be cleaned and lubricated with high temperature anti-seize compound.

Most Customers have this maintenance performed during the aircraft’s annual inspection which adds about 2 hours of labor to the inspection. We have had several of our Tuned Exhaust Systems rack up over 4,000 flight hours of trouble free performance (7,000+ flight hours is the current record in a commercial operation) as long as this maintenance is performed as required.

Still not sure if a Power Flow is right for you and your airplane? For complete peace of mind, check out our Risk Free Guarantee!
