Note: Due to high demand, limited to one oil filter p/n per order. Additional quantities can be ordered and will ship in approximately 8-10 weeks (based upon Challenger's production lead times).

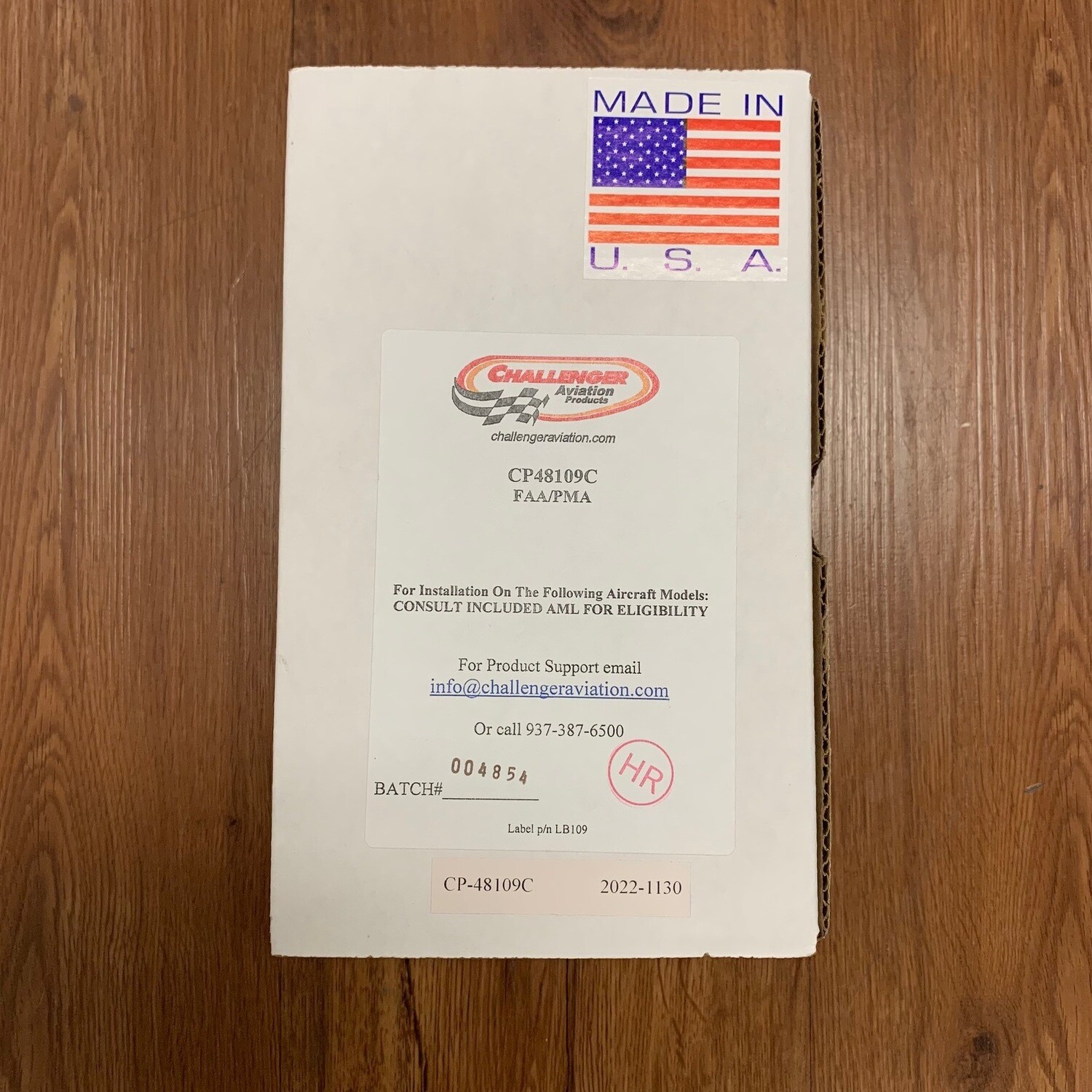

Challenger Complete Oil Filter CP-48109C Kit

The filter element is made from medical grade, type 304 stainless steel micron filter cloth providing unmatched protection against oil contamination and resultant engine damage. The nickel-plated rare earth magnet is installed in the top of the element for magnetic pre-filtering of the oil. The unique twist lock design allows for easy disassembly, inspection, and cleaning. The quad-ring gasket doubles the seal between the filter and the engine. The filter housing is machined from a solid piece of 6061 T6 billet aluminum with cooling fins to aid in dissipating heat down 7 degrees. FAA/PMA STC’d one time 337 required.

Features and Benefits

• Cleanable and Reusable
• High Flow Rate up to 20GPM
• Unique Twist Lock Design
• Exterior Oil Cooling Fins
• Easy Filter Element Inspection
• Unaffected by Water, Heat, or Pressure
• Safety Wire Attachments 360 degrees
• Environmentally Friendly
• The filter element is replaced at 1250 hours or 5 years whichever comes first

Certain part number numbers interchangeable:

• CP-48103C/CP-48104C
• CP-48108C/CP-48109C
• CP-48110C/CP-48111C

Please keep your important paperwork that is in the Ziploc bag with your aircraft logbook. When completing the STC request have your invoice number, where you purchased your filter, and the batch number that is found on the product box label, example batch# 004863. Please save the extra gasket in the box for your first replacement.

Challenger Oil Filters are EASA Approved

For a full list of comparability: Cleanable Oil Filter application guide.

Contact Challenger Aviation Products Product Support at 937-387-6500 or email info@challengeraviation.com.
